[Photo Gallery]

Remote data logger

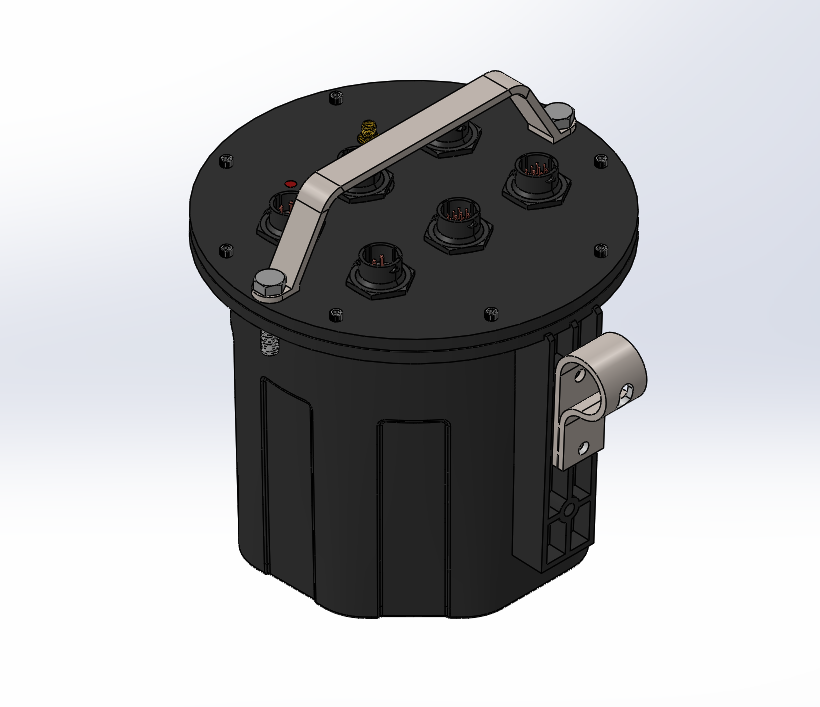

ISO View RTU

ISO view for the RTU.

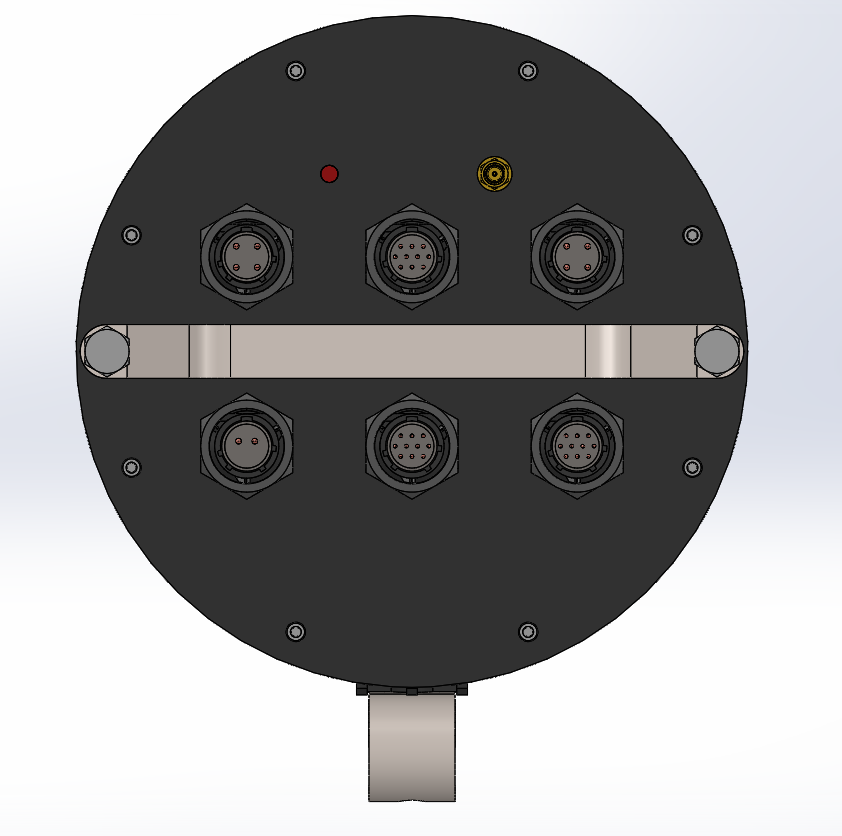

Top View RTU

Top assembily view for the RTU.

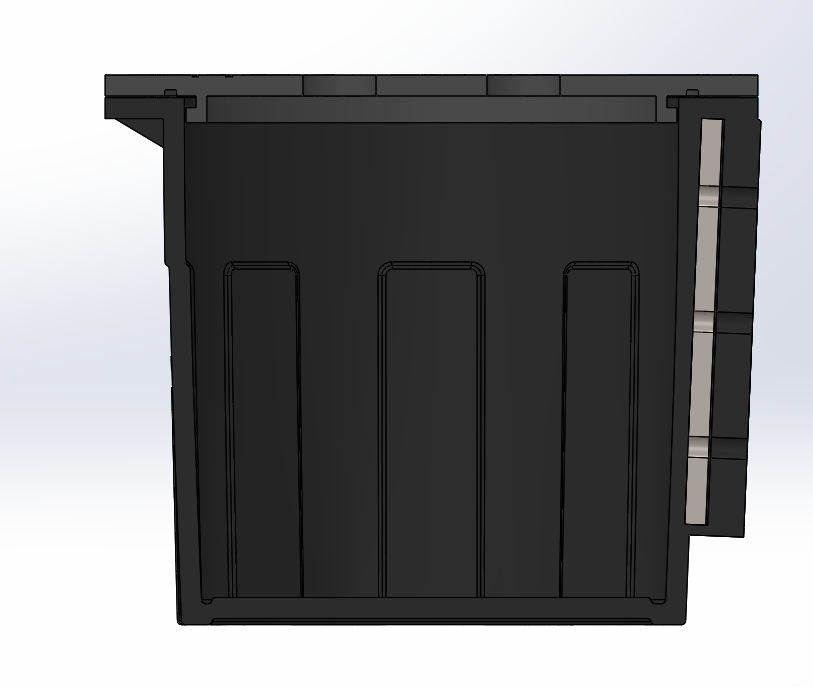

Section view of RTU.

Section view, hilighting the steel plate insert and O-ring grooves.

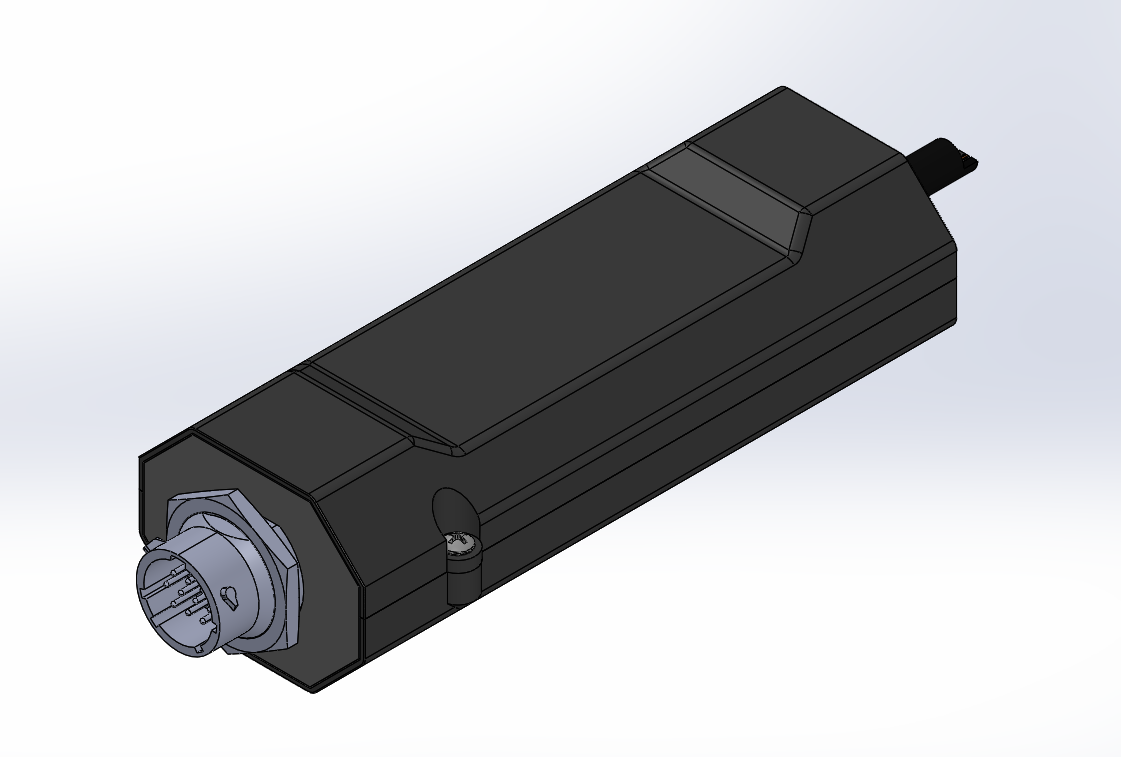

Digital to analog converter - Legacy Link

centered image

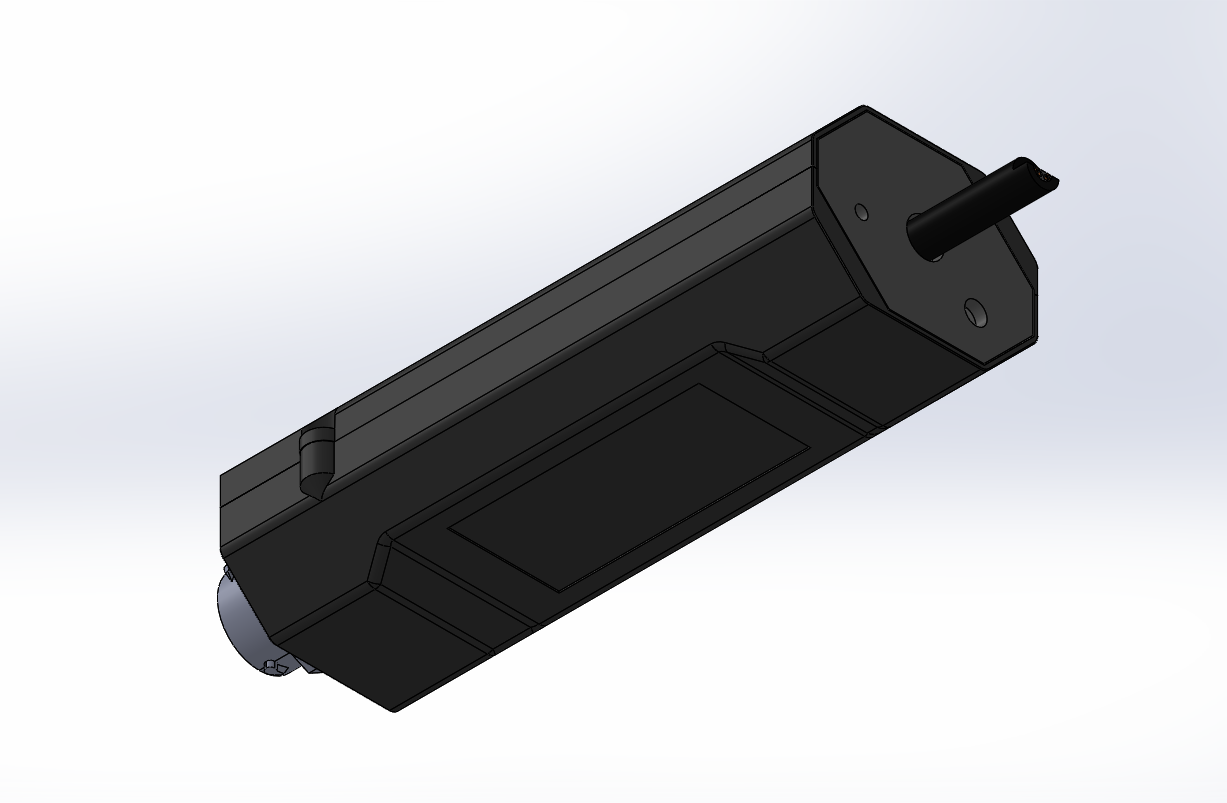

Alternate ISO view of LL

LL ISO alternate ISO view.

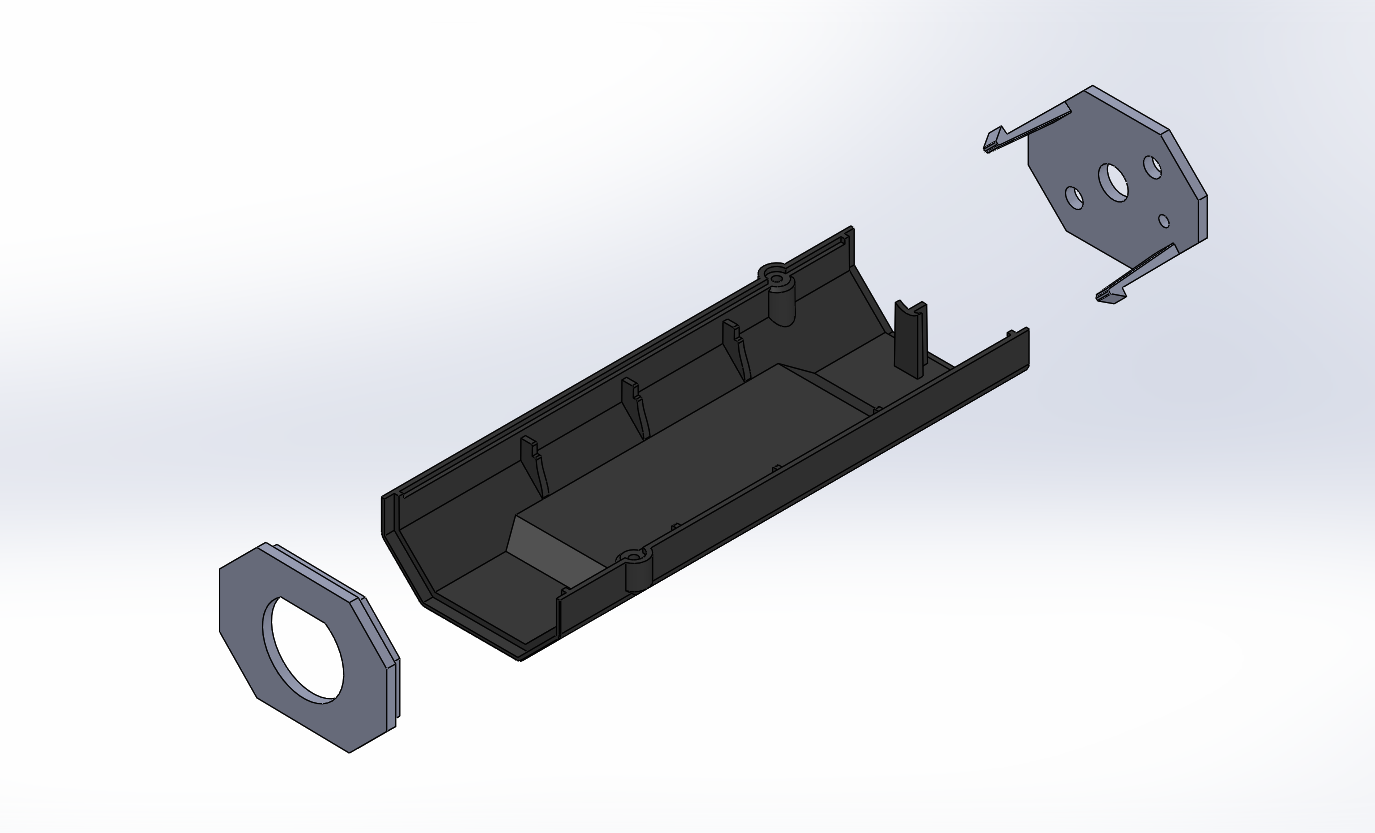

Inside view of LL

Inside view of legacy link.

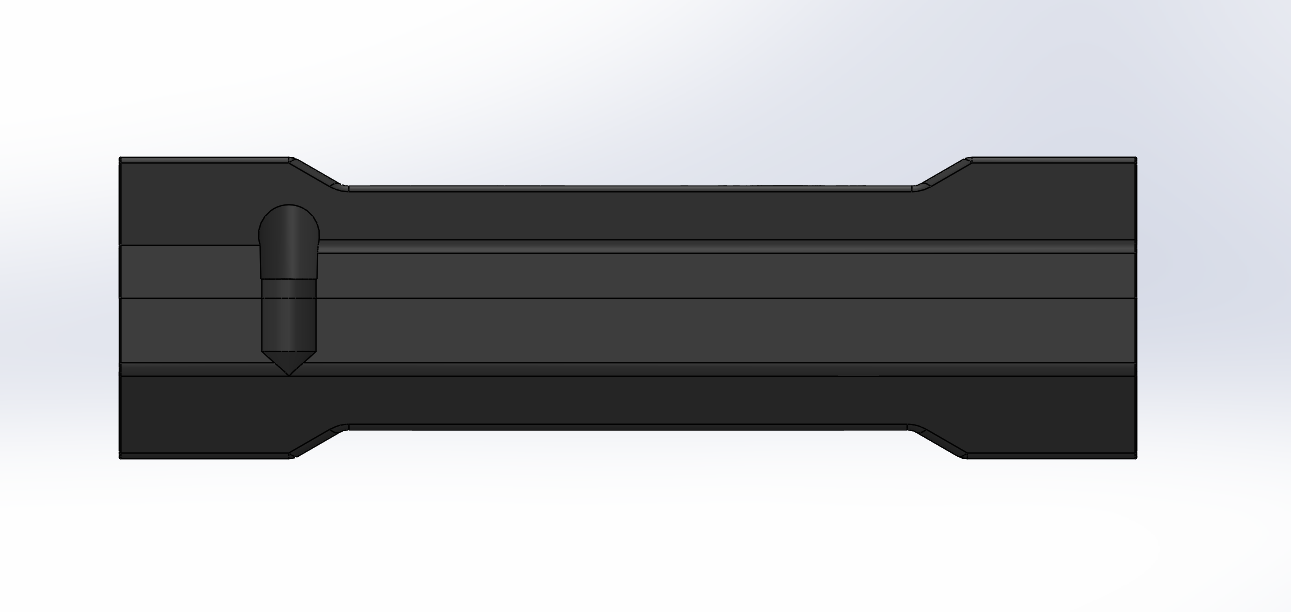

LL side view

Side view for LL.

Solar panel bracket

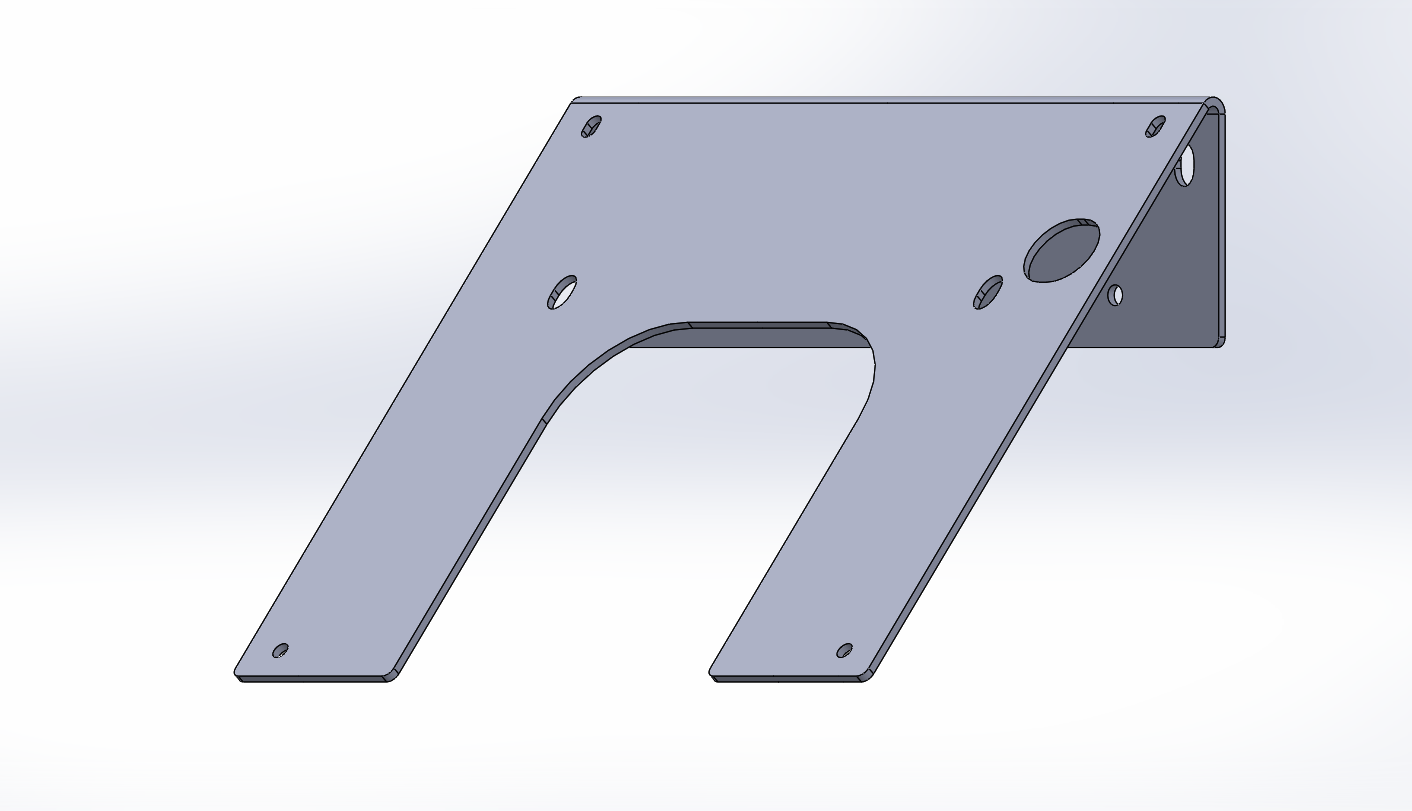

Bracket to hold solar panel

Bracket to hold a solar panel.

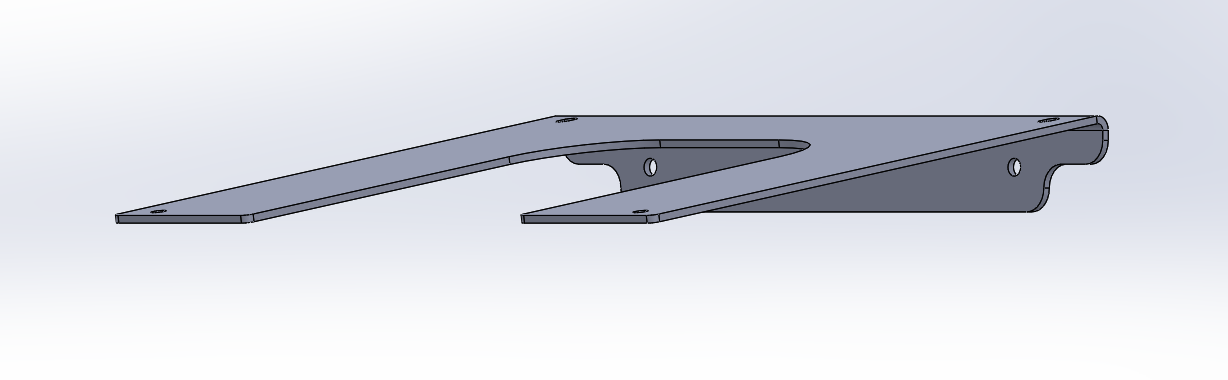

First solar bracket

First draft for a solar bracket.

Ultrasonic Resarch and Development

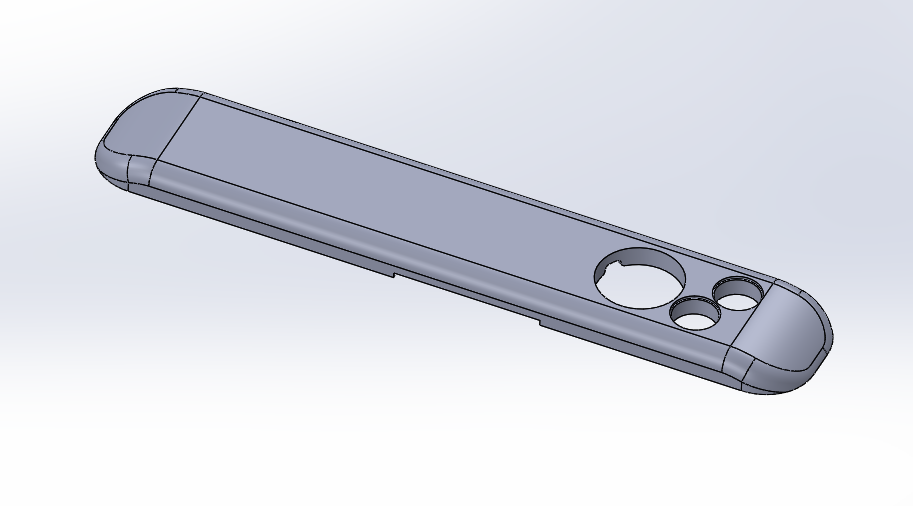

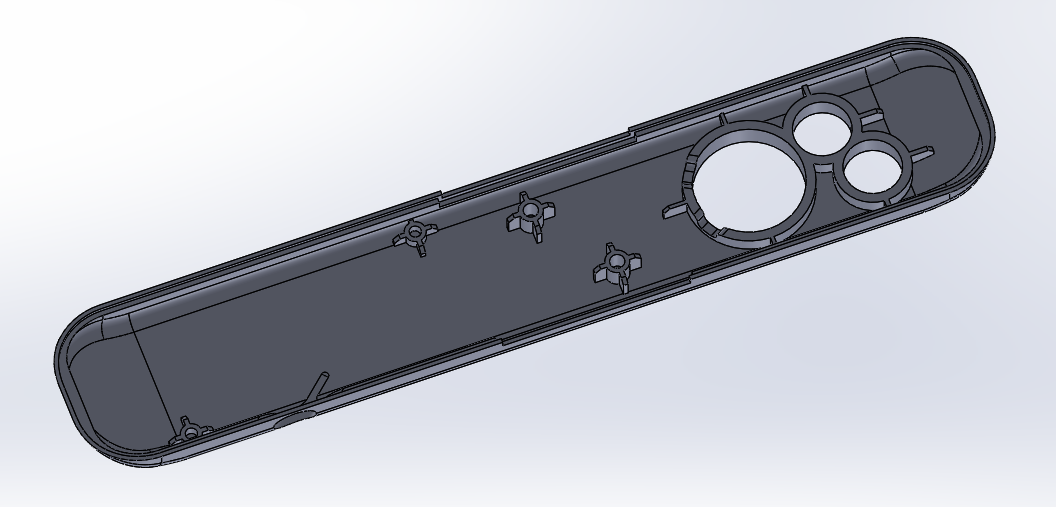

Modular sensor design

Modular sensor design.

Modular sensor design

Modular sensor design.

Wedge system

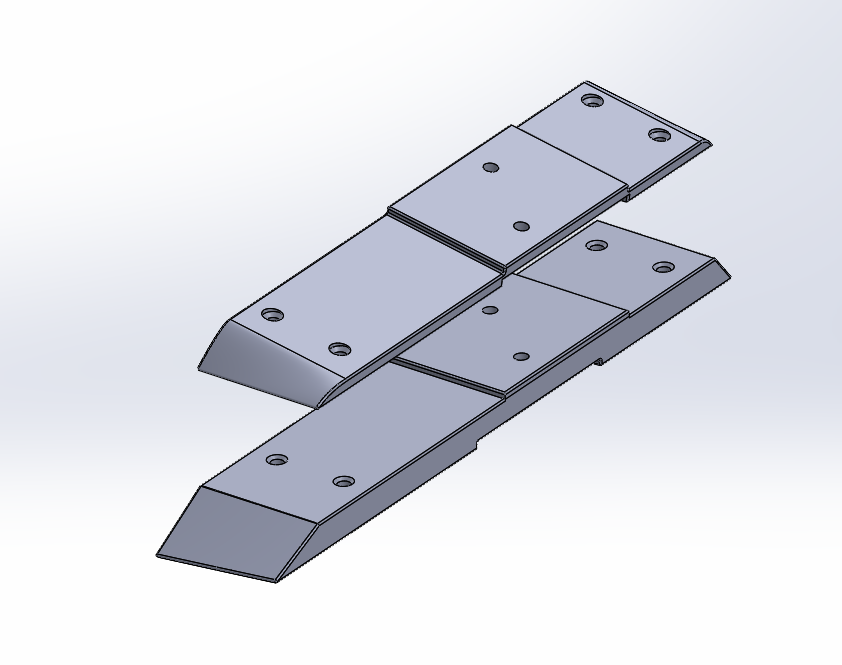

A base wedge and a shim wedge

A base and a shim.

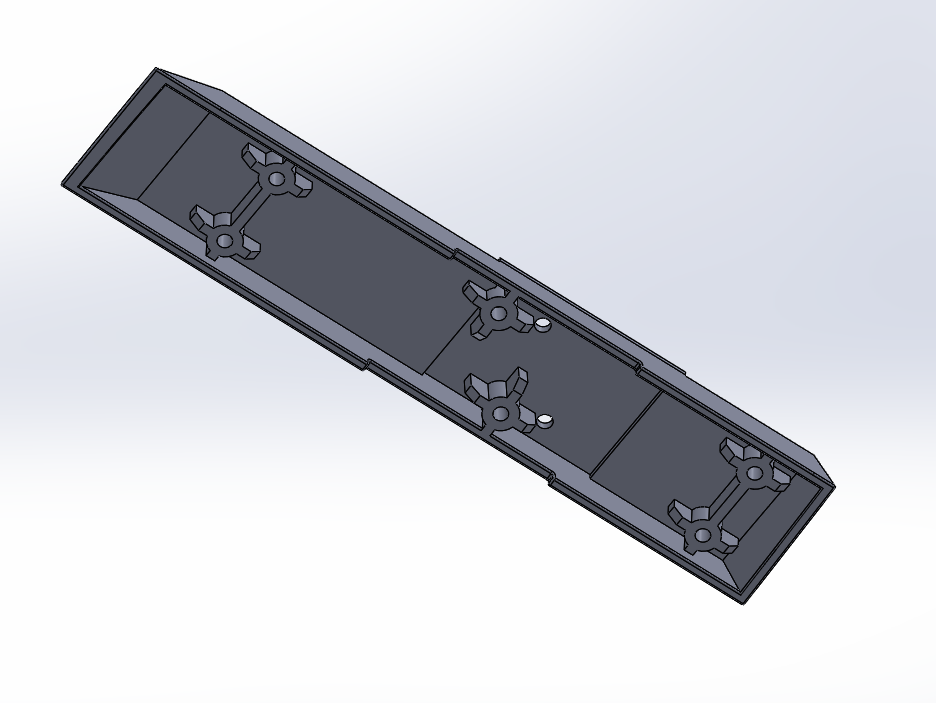

Bottom of a wedge

Bottom of a wedge.

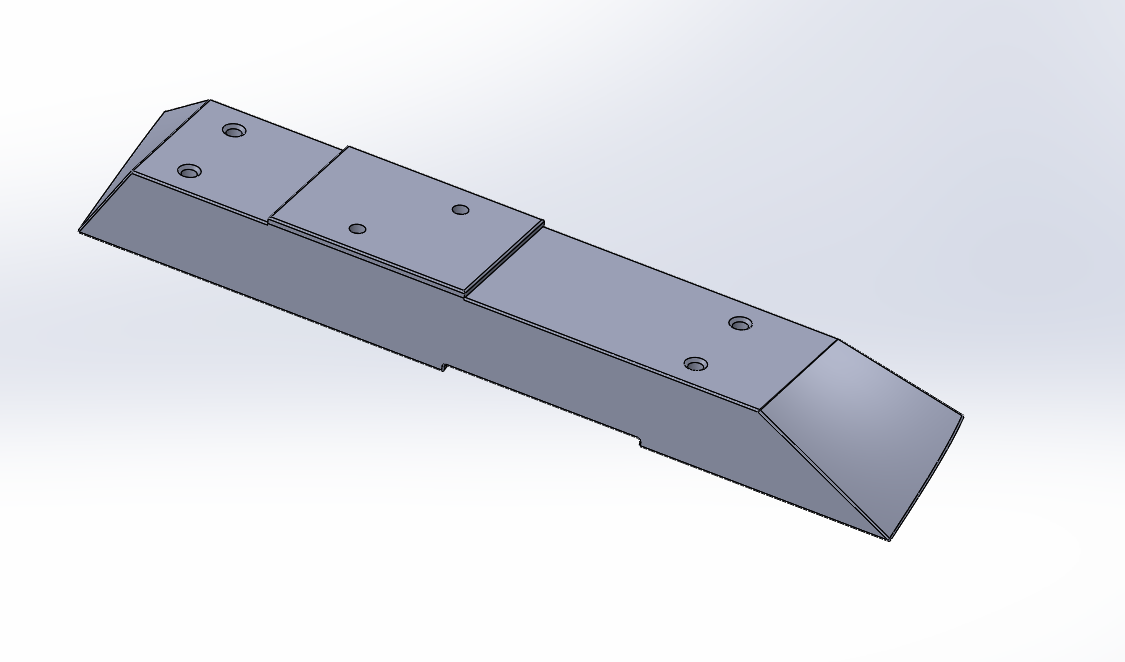

ISO view of a single base wedge.

ISO view of a single base wedge.

Raspberry Pi 4 Case

Raspberry Pi 4 Case

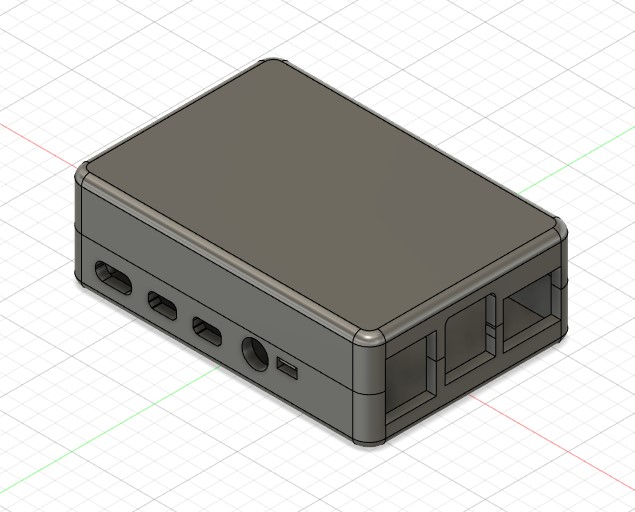

ISO View of Case

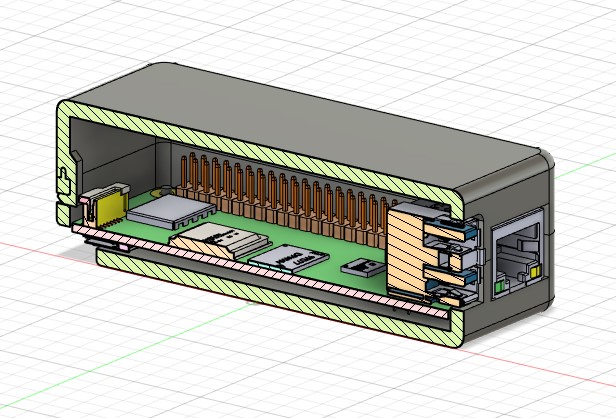

Raspberry Pi Case Section Cut


Section cut of Raspberry Pi 4 Case.

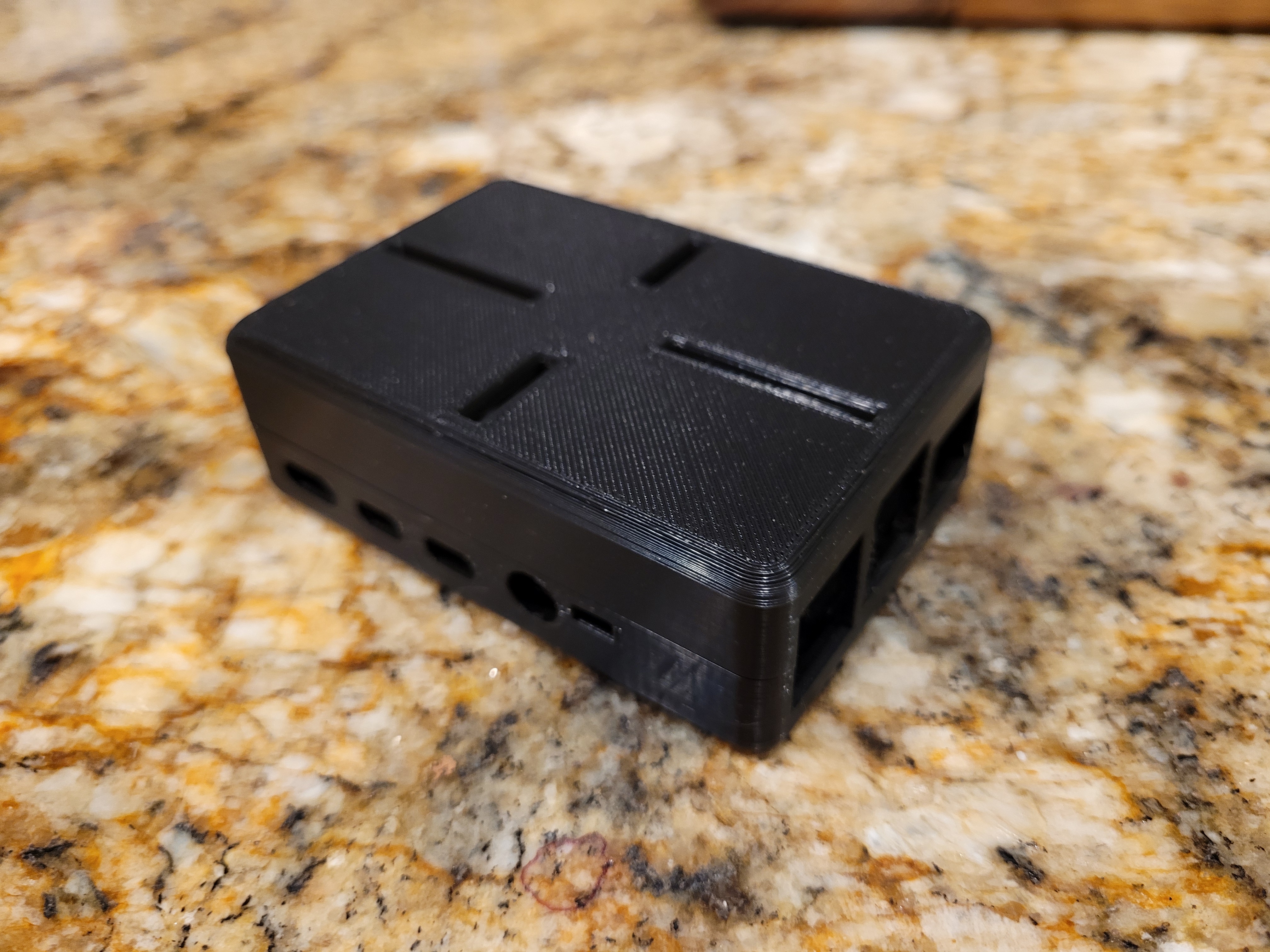

3D printed RB4 Case

3D printed Case.

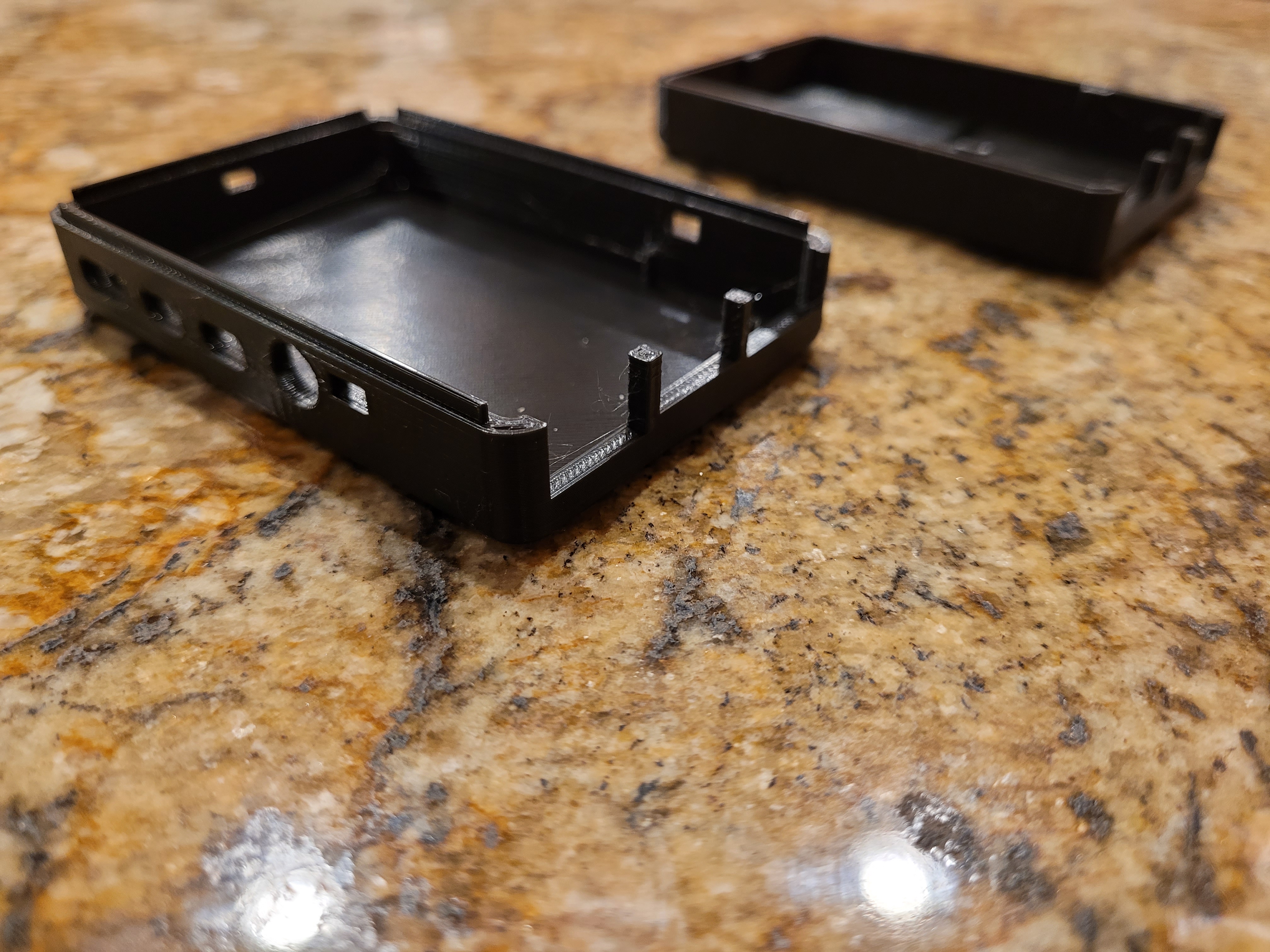

RB4 Case unclipped

Top and bottom of Raspberry Pi 4 Case.

Handle redesign

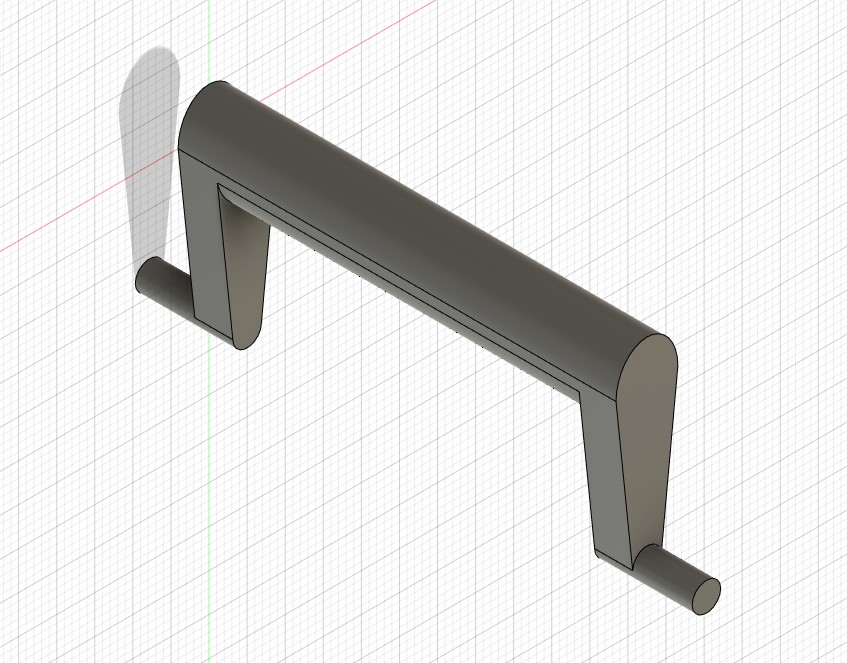

Replacement Handle in CAD

Replacement Handle.

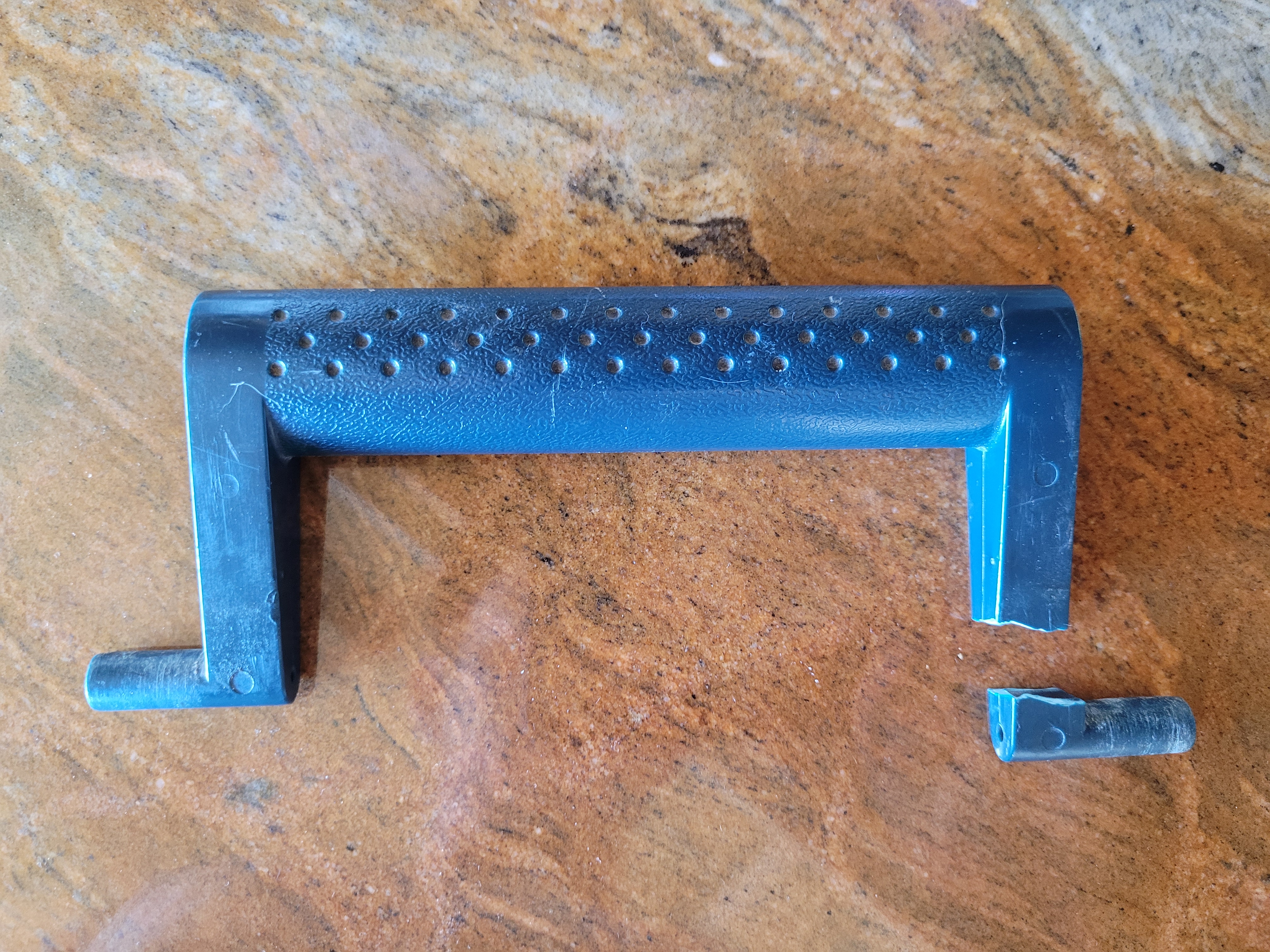

Broken Jackhammer Case Handle

Broken Jackhammer case handle.

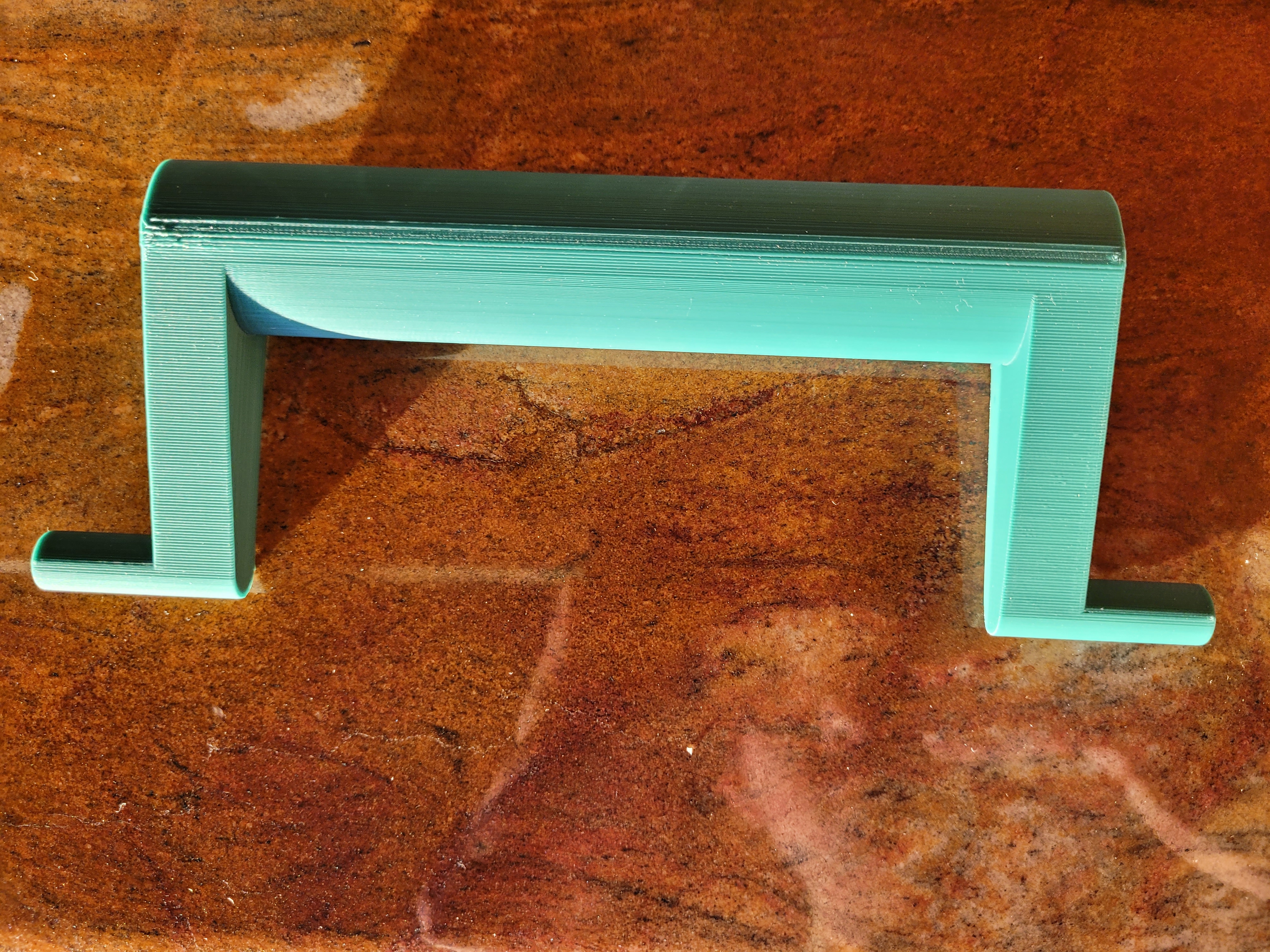

Replacement Jackhammer case handle

Replacement handle for the broken case.

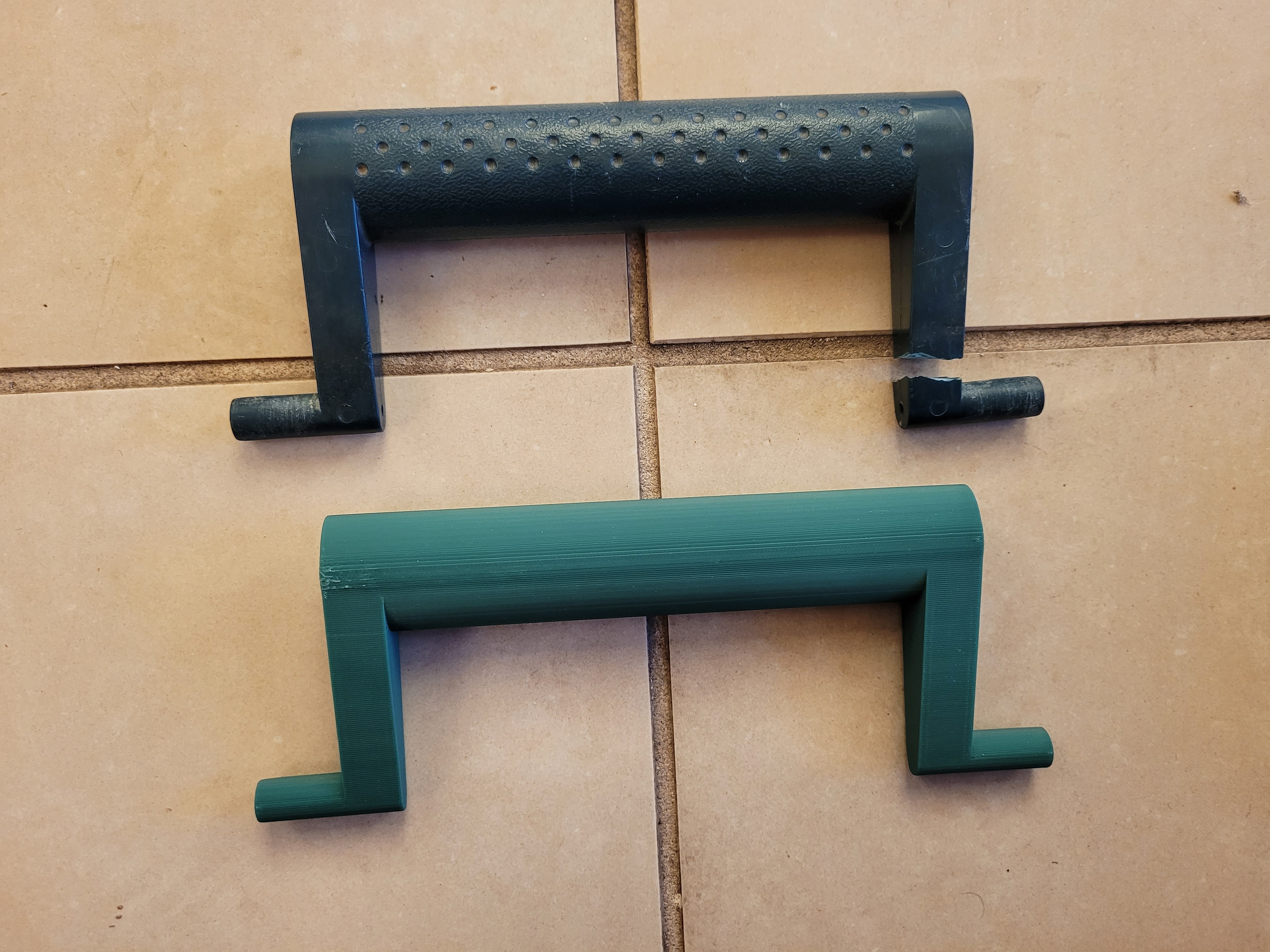

Replacement handle next to broken handle

Replacement handle next to broken handle.
